1.Rated Capacity:
8T Mobile dock
2.Length:
11300mm ramp
3.Width:
2100mm (DCQY-8)
4.Adjust height:
1100-1800mm
5.Initial Height:
1100mm
6.Weight:
2500kg
Deck:
Upper: 8mm High-strength Steel Nets
Bottom: 3mm High-strength Steel Plate
4 roots of 160×80×4mm Rectangular Tubes
Platform Framework:
1 roots of 120×60×4mm Rectangular Tubes
Vice-beam structure:
100*50*4mm Rectangular Tubes

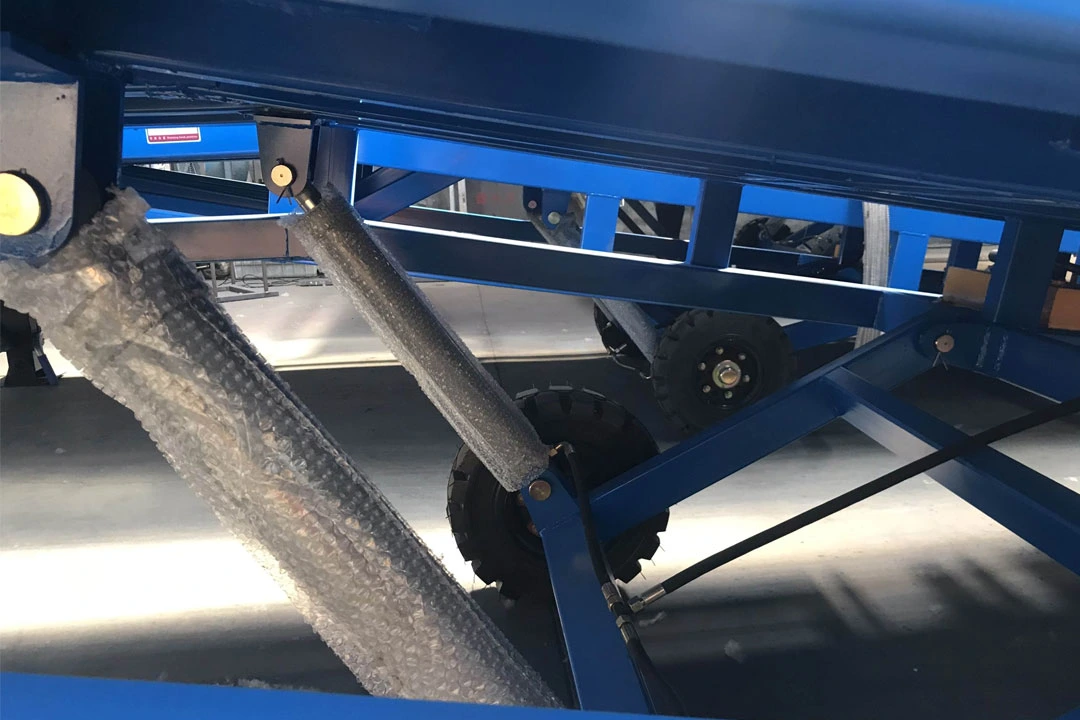

Oil Cylinder:
Φ80mm*2
Hydraulic Oil:
N32#Anti-abrade Oil
Hydraulic Hose:
The High-pressure Double Steel Nets Rubber Hose
Obturating Ring:
The VALQUA Import Seal Element
Guardrail:
220mm,40×60×3 Rectangular Tubes
Front Lip:
400mm long, 14mm Steel Plate
End plate:
800mm
Wheels:
600-9×2 Solid Tires
Control Mode:
Manual Control
Front legs:
1sets Mechanical adjustable legs

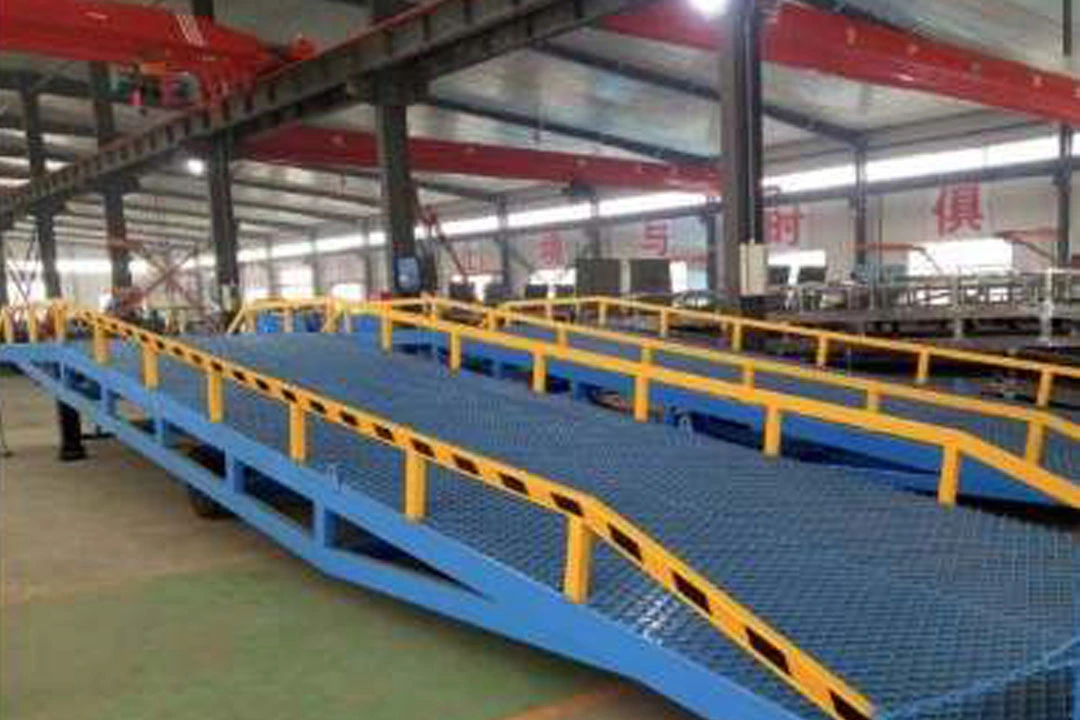

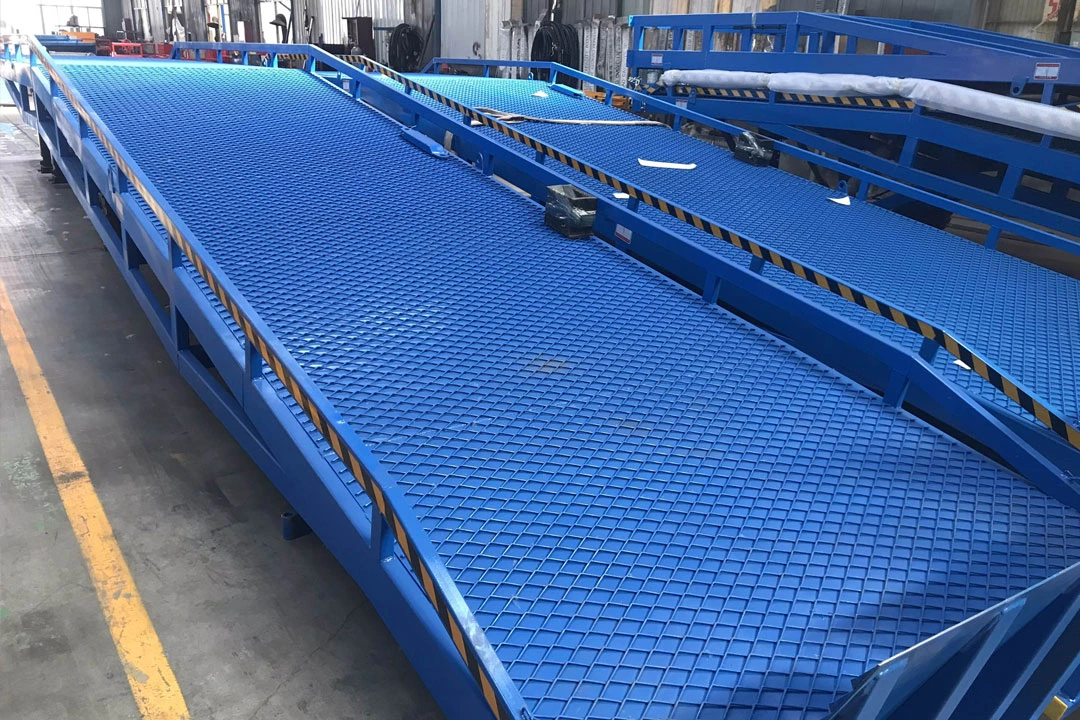

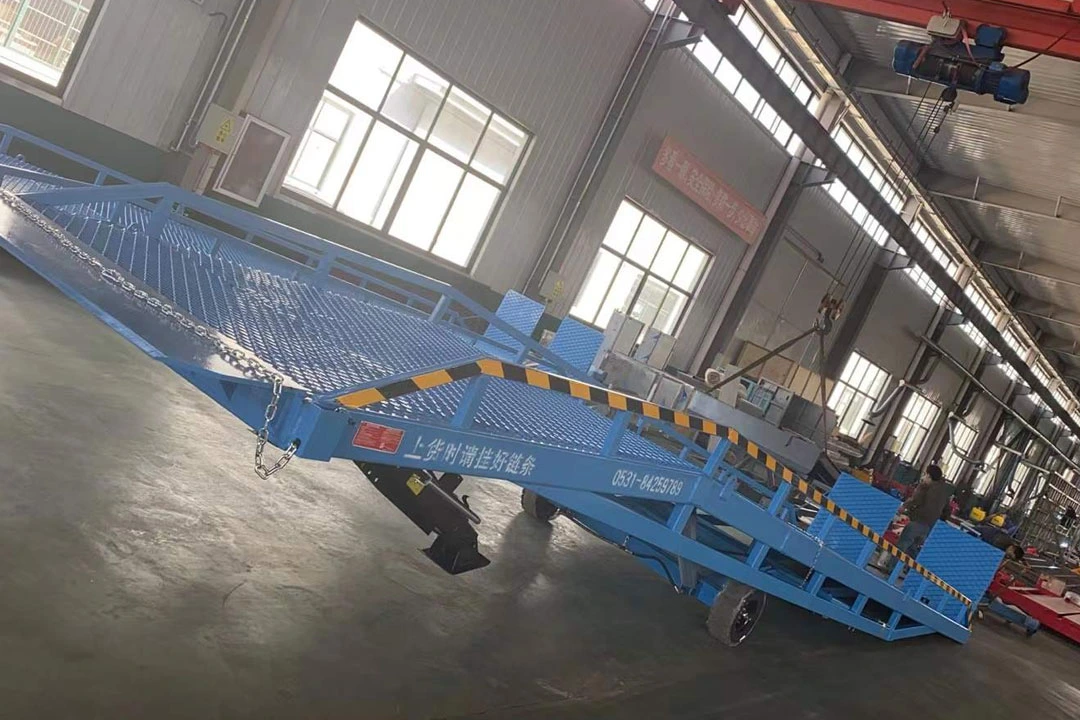

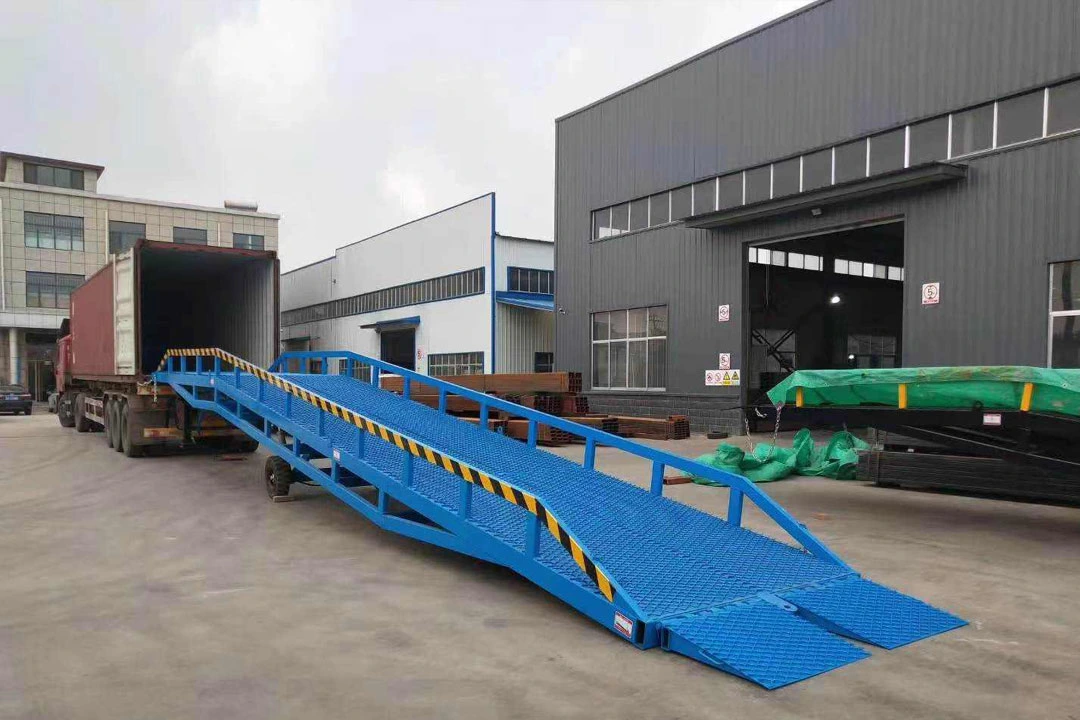

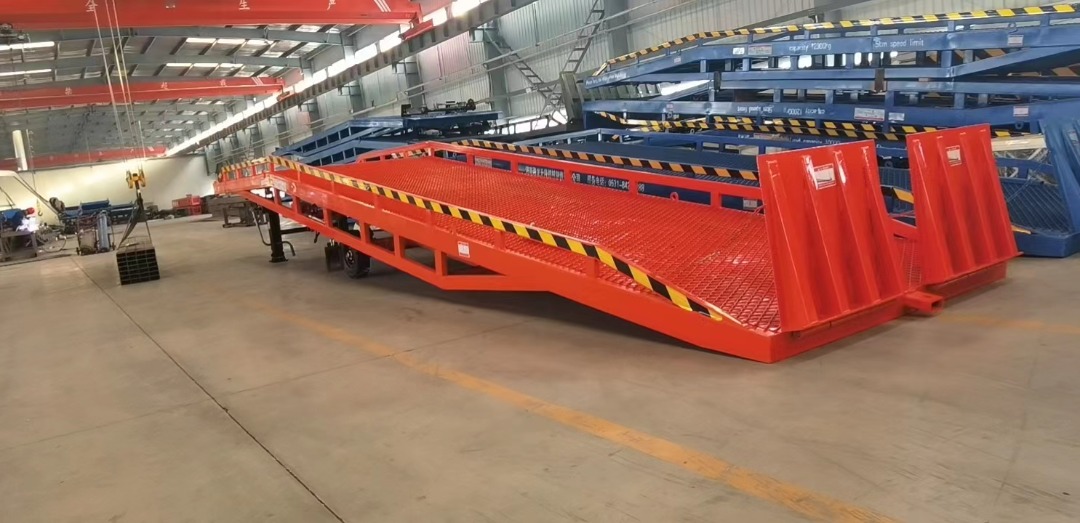

The Loading Dock Ramp is a heavy-duty mobile yard ramp designed to simplify loading and unloading operations in warehouses, factories, and logistics centers. With a rated capacity of 8 tons, this ramp provides a safe and efficient solution for moving goods between ground level and truck beds.
Built from high-strength steel, the ramp ensures durability and long-term performance even under demanding industrial conditions. Its adjustable height feature allows seamless alignment with different truck heights, making it highly versatile for various applications.
The anti-slip surface and strong structural support provide enhanced safety for operators and forklifts. Equipped with solid tires and mechanical adjustable legs, the ramp can be easily moved and stabilized wherever needed.
This mobile dock ramp is ideal for businesses that require flexibility, efficiency, and reliability in their material handling processes.
